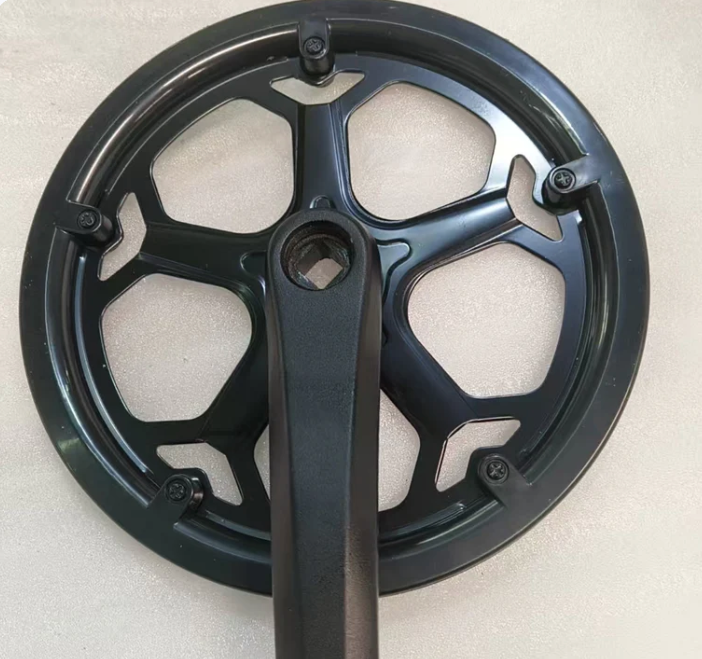

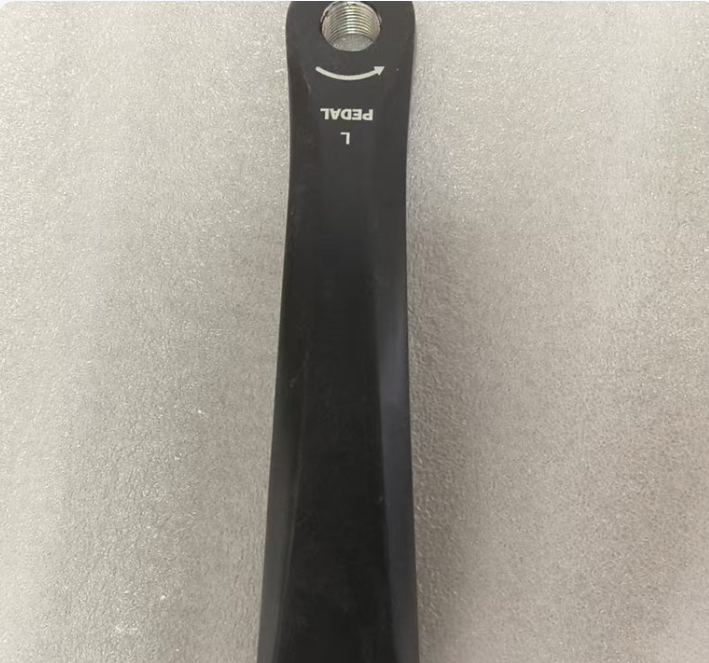

Ridstar Crank Arm

Ridstar Crank Arm — The Replacement That Fits Your Exact Model

The crank arm is what turns your pedalling into forward motion. It bolts to the bottom bracket spindle on one side and holds your pedal on the other. When it bends, cracks, strips at the pedal thread, or works loose on the spindle, you feel it every stroke — a click, a wobble, or a pedal that no longer sits square under your foot.

This is the direct replacement crank arm set for Ridstar electric bikes — both the left and right arm together. It is not a wear item you swap on a schedule; it is the part you need after an impact, a stripped pedal thread, or a spindle that has chewed up the original. Select your model and you get the matching set the first time.

Select Your Model

Use the dropdown above to choose the crank arm set that matches your bike. Each set includes both crank arms — left and right.

Not sure which model you have? Check the label on your frame or your original order confirmation, or call us at 1-866-938-7580 before ordering and we will confirm the right part with you.

When You’d Need a New Crank Arm

• Stripped pedal threads — If the pedal thread inside the crank arm strips, the pedal will no longer hold securely. Once the aluminium thread is gone, the arm has to be replaced — it cannot be safely re-tapped for the same pedal.
• Bent or cracked arm — After a hard impact, curb strike, or drop, a crank arm can bend or crack. A bent arm throws off your pedal stroke and puts uneven load on the bottom bracket. A cracked arm can fail without warning.
• Loose on the spindle — If the arm keeps working loose even after you re-torque the bolt, the square or splined interface where it meets the spindle may be worn out (rounded). A fresh arm restores a tight, click-free fit.
• Persistent clicking or creaking — A worn crank-arm-to-spindle interface creates a rhythmic click that follows your pedal cadence. When re-tightening no longer silences it, the arm itself is the fix.

Key Features

• Model-matched fit — Ordered by your exact Ridstar model, so the spindle interface, arm length, and pedal thread all match your bike. No measuring, no guessing.
• Complete set — both arms — You get the left (non-drive) and right (drive-side) crank arm together, so you can replace both at once and keep the drivetrain balanced. Left and right are not interchangeable — the pedal threads are opposite-handed — so having the matched pair means everything threads in and stays put.
• Direct OEM replacement — The same crank arms Ridstar uses on the bike, not a generic substitute that may sit at the wrong depth or use a different interface.

What’s Included

• 1 × Ridstar crank arm set — left and right arm, for the model you select

Not included: Pedals, crank bolts, bottom bracket, or tools. Installation typically needs a hex key or socket wrench and, for the drive side, a crank puller.

Shipping & Delivery

• Delivery: Ships within 3–7 business days
• Shipping: Free Canada-wide shipping
• Tracking: Tracking email sent once shipped

🇨🇦 Ships from Canada · Free shipping · 1-866-938-7580 — real humans answer

Frequently Asked Questions

Does this include both crank arms?

Yes. Each set includes both the left and right crank arm for your selected model, so you can replace the pair together. You only need to choose your model.

Which models does this fit?

Ridstar Q20, Q20 Lite, Q20 Pro, Q30, Q30 Lite, Q30 Pro, H20, H20 Pro, Q16, and FM001. Select your model from the dropdown so you receive the correct arm for your bike.

I’m not sure which Ridstar model I have. Can you help?

Yes. Check the model label on your frame or your original order confirmation, or call us at 1-866-938-7580 and we’ll confirm the right part before you order.

Does this come with a pedal or crank bolt?

No. This is the crank arm only. If your pedal or crank bolt is also damaged, you’ll need to source those separately — call us and we can point you to the right part.

Can I install this myself?

Many riders can. Removing the old arm and fitting the new one usually needs a hex key or socket wrench, and the drive side often needs a crank puller to draw the arm off the spindle. If you’re not comfortable, any local bike shop can do it quickly.
