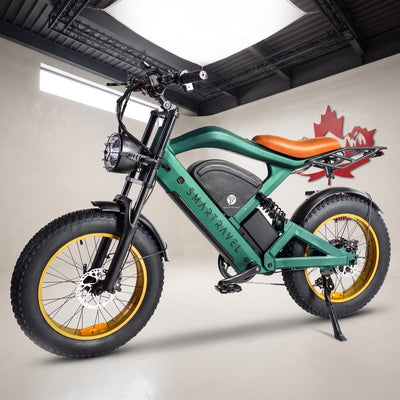

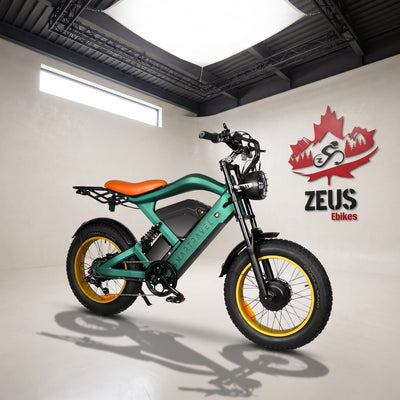

Smartravel Raptor ST202 GPS Enabled

1,296Wh Battery. Built-In GPS Anti-Theft. 1500W Full-Suspension Fat-Tire. The Only GPS eBike at This Price.

Every high-power fat-tire bike in this category competes on raw wattage. The Raptor ST202 GPS Enabled competes on something harder to replicate: integrated GPS hardware, remote phone-disable, and live anti-theft tracking built into the frame from the factory — at $2,699 CAD, the lowest entry point for GPS-equipped full-suspension fat-tire riding in the Zeus catalogue. No aftermarket tracker. No drilling. No second charge cable hanging off your handlebars.

The 48V 27Ah battery delivers 1,296 Wh of capacity — enough for 70–110 km of real-world mixed riding and enough reserve after winter’s 20–30% penalty to complete a full trail session at −10°C. The KKE R150S hydraulic coil fork and EXA A5-RE rear shock are the same suspension components fitted to the more expensive dual-motor Pro. The hydraulic disc brakes are 180mm front and rear. The chain is KMC Z8.3 EPT. The drivetrain is Shimano Altus M310. Smartravel did not cut component corners on the single-motor model.

Price: $2,699 CAD — or as low as $225/mo with financing →  ·  🇨🇦 Ships from Canada · Free shipping · 12-mo warranty · 1-866-938-7580 — real humans answer

Why the Raptor ST202 GPS Enabled Sits in a Category of Its Own

At $2,699, this bike sits $146 below the dual-motor Pro. That gap buys you a meaningful set of trade-offs worth understanding clearly before you choose:

• Same GPS, same suspension, same certification — at a lower price. The KKE R150S fork, EXA A5-RE shock, IP65 rating, UL2849 certification, and full GPS anti-theft suite are shared across both Raptor models. You are paying $146 less for single-motor rear drive vs dual-motor AWD — not for cheaper components.
• 10 kg lighter than the Pro. 51.6 kg (113.9 lbs) vs 56.2 kg (123.7 lbs). Not light by any measure, but meaningfully easier to lift, store, and manoeuvre on tight singletrack. If you load your bike without help regularly, this difference is felt every time.
• 1,296 Wh is still serious range for a single-motor bike. For riders who aren’t doing back-to-back 100+ km days, the single battery delivers more than enough energy for extended trail sessions year-round. See our wattage guide for Canadian riders → for context on how battery size maps to real-world use.
• UL2849 + TÜV certification opens doors. Literally. Many apartment buildings, condo parkades, and commercial spaces across Canada now require UL-certified eBikes for indoor storage. The Raptor ST202 GPS Enabled qualifies. Several bikes at this price point do not publish certification status at all.

Key Features

• 1500W brushless geared hub motor — 86 Nm, FOC technology. Field-Oriented Control delivers smooth, adaptive power without the on/off surge of basic hub motors. At 86 Nm, the Raptor ST202 handles moderate grades and mixed terrain competently. The FOC controller means power output adjusts to load in real time — important on technical off-road sections where abrupt torque spikes cause wheel spin on loose surfaces. See our pedal assist vs throttle guide → for help configuring power modes.
• 48V 27Ah battery (1,296 Wh) — Samsung / LG lithium-ion cells. 800-cycle lifespan to 80% capacity. At 1,296 Wh, the ST202 GPS Enabled carries more energy than most single-motor fat-tire bikes at this price. The 5–6 hour charge time via the included 58.8V 3A charger means an overnight charge covers the next day’s ride with plenty to spare.
• KKE R150S hydraulic coil fork — 140mm travel. The identical fork fitted to the dual-motor Pro. Adjustable compression and rebound damping, 15×150mm thru-axle. Not a spring fork with basic pre-load — a component-grade piece of suspension hardware that most fat-tire bikes at this price point do not include. On rocky trails and root sections, tunable travel makes a real difference in control.
• EXA A5-RE coil rear shock — full suspension. Again, matched to the Pro. Full-suspension fat-tire at $2,699 is not common in this category. The EXA shock absorbs mid-section impacts that a hardtail transmits directly to the rider. Over a 3-hour trail session, the reduction in fatigue is meaningful.
• 180mm hydraulic disc brakes front and rear — motor cutoff. At 113.9 lbs and 51.5 km/h, you need serious stopping power. 180mm rotors on both ends with motor inhibitor (stops drive on brake lever activation) delivers it. The motor cutoff is particularly important on steep descents — it prevents the drive system fighting against braking force.
• Shimano Altus M310 7-speed — KMC Z8.3 EPT chain. Shimano-indexed shifting. KMC Z8.3 EPT anti-rust treatment chain (130 links). On a 1500W bike, you’ll use the gears for cadence optimisation at different assist levels rather than for raw climbing — the motor handles the grades. Altus parts are widely stocked across Canada; service is straightforward everywhere.
• GPS anti-theft — frame-embedded, app-controlled. Real-time positioning via the Smartravel app. Geofencing sends an alert when the bike leaves a defined boundary. Remote motor disable cuts power from your phone if the bike is taken. 7-day ride history for route review. Basic alarm and motor kill require no subscription; live location tracking requires one. No other bike in this comparison ships with this system built in.
• IP65 weather rating — UL2849 + TÜV certified. IP65 is rated for sustained water jets, not just light rain — meaningful for wet trail sessions and Canadian precipitation. UL2849 certifies the complete electrical system (battery + motor + wiring + controller) against fire and electrical faults. TÜV is an independent German technical safety standard. Both certifications appear on Smartravel’s published product page for this model.

Everything Included

• Smartravel Raptor ST202 GPS Enabled eBike (~90% pre-assembled per Smartravel)
• 48V 27Ah lithium-ion battery (installed)
• 58.8V 3A fast charger
• Tool kit (hex keys, wrenches)
• Rear rack and fenders
• LED headlight (48V) and brake-activated tail light
• Electric horn
• Heavy-duty aluminium kickstand
• Leather saddle
• Smart LCD display (USB-A port integrated)

No additional purchases required to ride. GPS app is free on iOS and Android; live tracking subscription is optional and separate.

The Honest Take — What We’d Change

• Single motor means no AWD. On dry packed trails and gravel, rear drive is sufficient and more energy-efficient. On wet clay, loose rock, or icy inclines, a single rear motor loses traction where a dual-motor AWD system keeps pulling. If your regular riding includes consistently loose or slippery terrain, the $146 premium for the Raptor ST202 Pro → is specifically worth it for the front motor’s added bite.
• 113.9 lbs requires a plan for transport. This is the manufacturer’s published figure — a significant correction from the 88 lbs listed on the old Zeus description. At this weight, loading solo into a truck bed is difficult and potentially injurious. Budget for a ramp or plan for two people. It’s an honest limitation of the full-suspension + 1,296 Wh battery combination.
• Speed sensor, not torque sensor. The Raptor ST202 uses a speed (cadence) sensor for pedal assist. Pedal assist engages when the cranks are turning, not in response to how hard you push. You feel the difference most at low speeds and on technical climbs. Torque sensors cost more and are rarer at this price point; it’s an industry-wide limitation, not a Smartravel-specific cut.
• Live GPS tracking runs on a subscription. The core anti-theft value — alarm, remote motor kill — is subscription-free. Full real-time location tracking and advanced geofencing require a Smartravel subscription. It’s disclosed clearly. Factor it into total cost of ownership if live tracking is the primary reason you’re buying this bike over a non-GPS alternative.

The GPS anti-theft system is the reason to choose the Raptor ST202 GPS Enabled over higher-torque alternatives at the same price. If security is not a priority, the Freesky Cheetah MT-380 or YVY C20 Pro deliver more raw power for similar money. If you want GPS-secured full-suspension fat-tire riding — and you want it for under $2,700 — this is the only option at Zeus that delivers all three.

Full Specifications

Who Is This Bike For?

• Off-road riders who store or park in urban areas — You trail ride on weekends but leave the bike in a condo storage room, a parkade, or an unsupervised lot during the week. Built-in GPS with geofencing alerts and remote motor kill provides real protection that a U-lock alone cannot match. The UL2849 certification qualifies the bike for buildings that have started requiring certification for indoor eBike storage — an increasingly common requirement in Canadian cities.
• Riders upgrading from a basic hardtail fat-tire — If your current bike has spring-only forks or no rear suspension, the KKE R150S + EXA A5-RE combination will be immediately noticeable on technical terrain. Full hydraulic suspension at $2,699 with GPS included is the core value proposition here. See our Canadian winter eBike guide → for how full suspension changes the experience in cold conditions.
• Heavier riders up to 350 lbs — The manufacturer’s published payload is 350 lbs (158 kg). The full-suspension system and 20×4.0 fat tires absorb trail impacts that pass straight through a hardtail at this load. See our guide to eBikes for heavier riders → for context on how payload ratings work in real conditions.
• Buyers who want GPS security without the Pro’s dual-battery premium — If AWD traction and range above 100 km are not core requirements for your riding, this is the more efficient spend. $146 less, 10 kg less, same GPS suite, same suspension, same certification. For most single-track and trail riders, the single-motor configuration is mechanically simpler and entirely sufficient.

Who it’s NOT for: Riders who need street-legal operation on public roads — see our Urban eBike collection →. Riders who regularly ride deep loose terrain (wet clay, icy inclines, deep sand) where AWD traction is essential — choose the Raptor ST202 Pro →. Riders who prioritise raw torque above all else — the Freesky Cheetah MT-380 → (200 Nm) and YVY C20 Pro → (180 Nm) both outperform on torque. Anyone loading solo into a truck bed — 113.9 lbs needs a second person or a ramp.

How It Compares — 6 Fat-Tire & Retro eBikes at Zeus

All prices in CAD, July 2026. Scroll right on mobile to see all columns.

Frequently Asked Questions

Is the Smartravel Raptor ST202 GPS Enabled legal on public roads in Canada?

No. Its 51.5 km/h top speed and 1500W peak motor exceed Canada’s Power-Assisted Bicycle limits (500W nominal / 32 km/h). Off-road, private property, and closed-course use only. See our Canadian eBike laws guide →

Does the GPS require a monthly subscription?

Remote motor disable and basic movement alarm are subscription-free. Full real-time tracking, advanced geofencing, and 7-day ride history require a Smartravel subscription. The core anti-theft functions work without ongoing fees.

What is the realistic range in Canada?

Zeus estimates 70–110 km in mixed riding during warmer months. At −10°C, expect 49–77 km (20–30% winter reduction). PAS levels 1–2 significantly extend range over full-throttle riding. Manufacturer rates the bike at 60–80 miles (96–128 km).

How heavy is this bike?

51.6 kg (113.9 lbs) per Smartravel’s published specifications. Lighter than the dual-battery Pro (56.2 kg / 123.7 lbs), but still a two-person job or ramp required for truck loading.

How does this compare to the Raptor ST202 Pro?

GPS Enabled ($2,699): single rear motor 1500W, 1,296 Wh single battery, 86 Nm, 51.5 km/h, 113.9 lbs. Pro ($2,845): dual AWD 3000W, 2,600 Wh dual battery, 150 Nm, 56 km/h, 123.7 lbs. Both include GPS. Choose GPS Enabled for lighter weight and simpler mechanics. Choose Pro for AWD traction and extended range. See the Raptor ST202 Pro →

What warranty is included?

12-month all-inclusive manufacturer warranty from Smartravel (excludes accessories and batteries). Zeus adds a 1-month complimentary support warranty. Extended plans: 1-yr ($59), 2-yr ($119), 3-yr ($169), 5-yr ($299). Call 1-866-938-7580 to add coverage.

Is this good for Canadian winter riding?

The 20×4.0 fat tires handle packed snow confidently. IP65 protects against rain, slush, and snow spray. Plan for 20–30% range reduction at sub-zero temperatures. For icy inclines and deep loose snow where AWD grip is critical, the Raptor ST202 Pro → is the better call. See our Canadian winter eBike guide →

Can I use this for daily commuting?

Not on public roads — 51.5 km/h exceeds Canada’s PAB limit. For legal urban commuting, see our Urban eBike collection →. The 1,296 Wh battery handles extended daily off-road riding comfortably. See our financing options → if the price is the remaining hurdle.

---
